2002 GMMG Blackbird Trans Am #44 — Bringing a Rare Bird Back

This 2002 GMMG Blackbird Trans Am is #44 of just 50 produced for the 2002 model year, and when it came to Quick Cars Tampa, this particular Blackbird had seen better days.

We acquired the car through a trade involving our 1998 Trans Am—a considerably different animal powered by a 408ci LS with an 88mm T6 single turbo and six-speed manual transmission.

The Blackbird ran and drove, but years of use had taken their toll. The Navy Blue Metallic paint was damaged in nearly every corner, the air conditioning didn't work, the passenger door sagged from damage around the hinge mounting area, and numerous smaller issues throughout the car needed attention.

Underneath it all, however, was something worth saving: a genuine GMMG Blackbird.

This car belongs to Daniel Martin of Quick Cars Tampa. Because Daniel works out of state, the majority of the restoration was undertaken by Johnny and Jim, with the goal of returning the car to the condition its rarity deserved while preserving the details that made a Blackbird a Blackbird.

Starting From the Engine Bay Out

The project began with removal of the engine and transmission.

With the drivetrain out, years of dirt and grime could finally be addressed properly. The engine bay, drivetrain, and surrounding components were thoroughly pressure cleaned, giving us a clean foundation from which to start putting the car back together.

The damaged passenger door presented another problem. Cracking around the original door's hinge mounting area had allowed the door to sag, so rather than attempting to work around a compromised shell, we sourced a replacement passenger door.

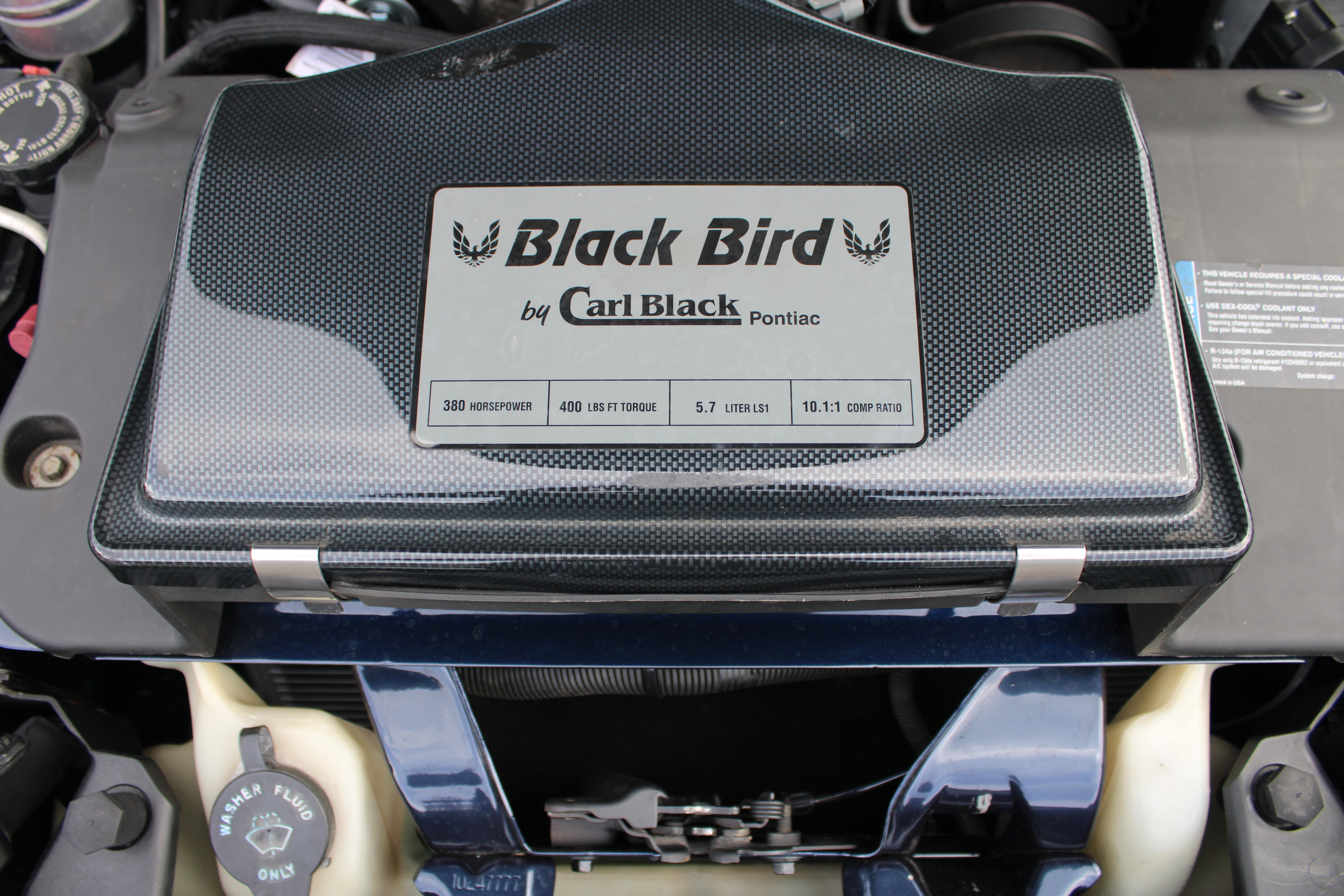

Attention then turned to the LS1.

The engine itself was cleaned and detailed, and routine service items including the spark plugs and plug wires were replaced.

The existing long-tube headers were showing significant corrosion and incorporated blocked-off EGR bungs. Rather than reinstall them, we sourced a new set of ceramic-coated long-tube headers without the unnecessary EGR provisions, resulting in a considerably cleaner appearance.

We also addressed one of the less-loved pieces of fourth-generation F-body engineering: the factory power-steering cooler incorporated into the upper radiator hose. These units are known to fail internally, potentially allowing coolant into the power-steering system.

The factory cooler was eliminated during reassembly, simplifying the system and removing a potential failure point.

Restoring the Details

One of the goals with this project was to make the finished engine compartment look like it belonged on a carefully preserved car rather than simply a freshly painted one.

That meant tracking down details most people would probably overlook.

We researched and sourced replacement underhood decals, emissions labels, belt-routing labels, and fuse-box panel labels, restoring many of the small visual details normally lost after more than two decades of ownership and repairs.

The factory power antenna was also replaced after the original became bent and would no longer retract completely.

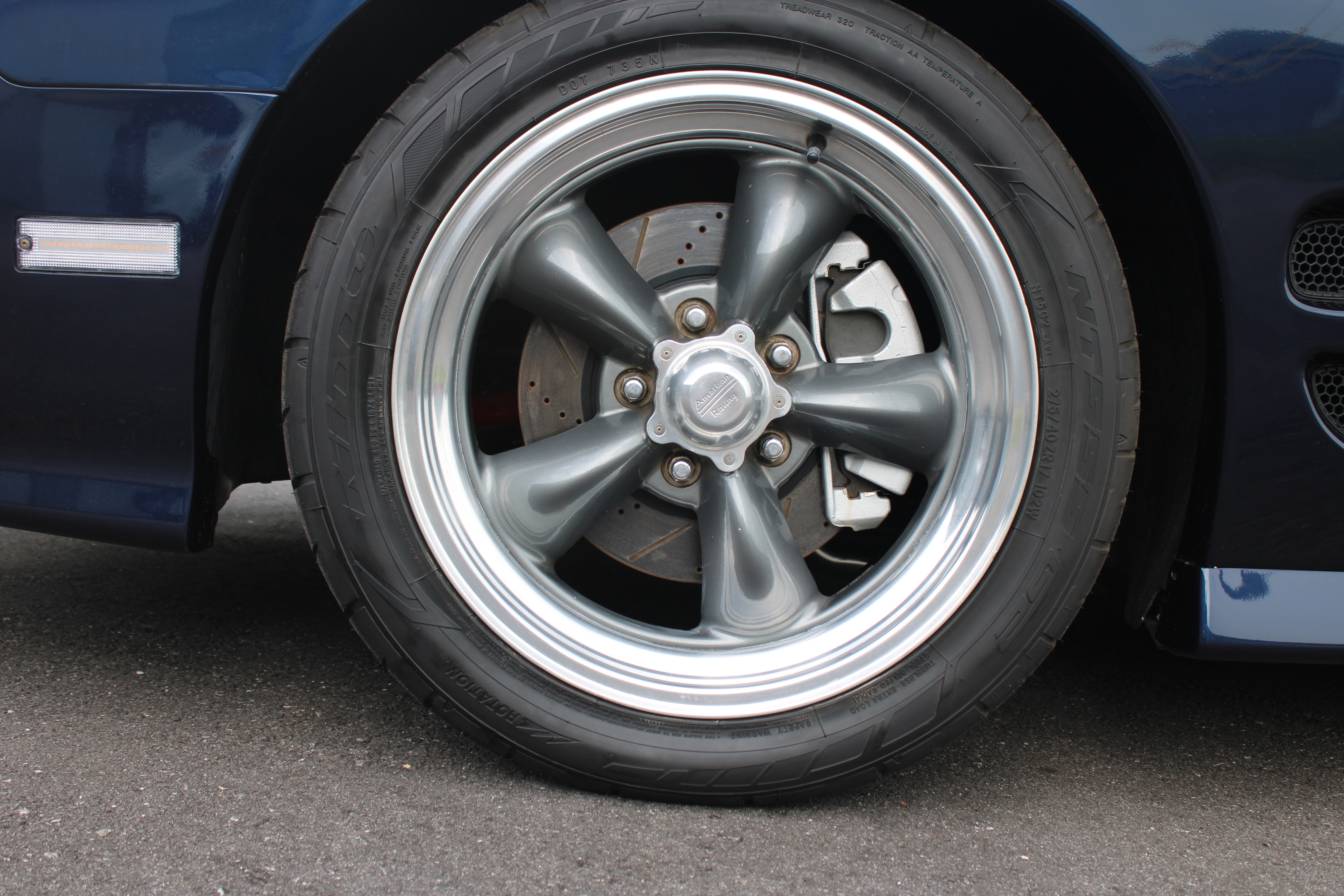

Weathered windshield-wiper and cowl trim was restored using SEM Trim Black, while the car's Torq-Thrust II wheels were polished back to a bright finish.

The factory brake calipers were cleaned and refinished in fresh silver before going back together. It was a relatively small part of the restoration, but one that made a remarkable difference behind the polished wheels.

Preserving the Blackbird

Restoring a limited-production car becomes considerably more difficult when the pieces that distinguish it from an ordinary Trans Am haven't been available from a dealership in decades.

Fortunately, this car came with an impressive collection of original replacement pieces.

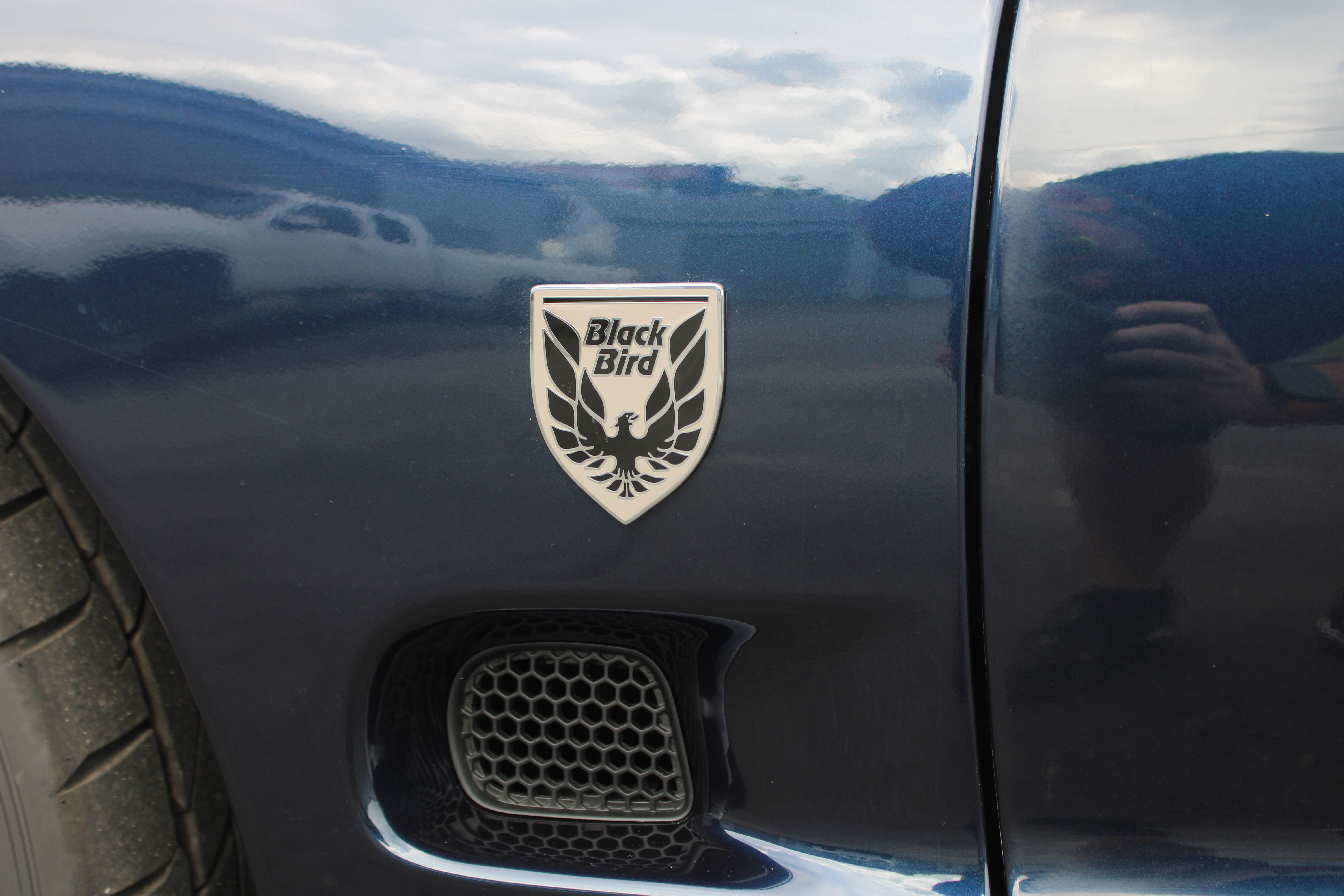

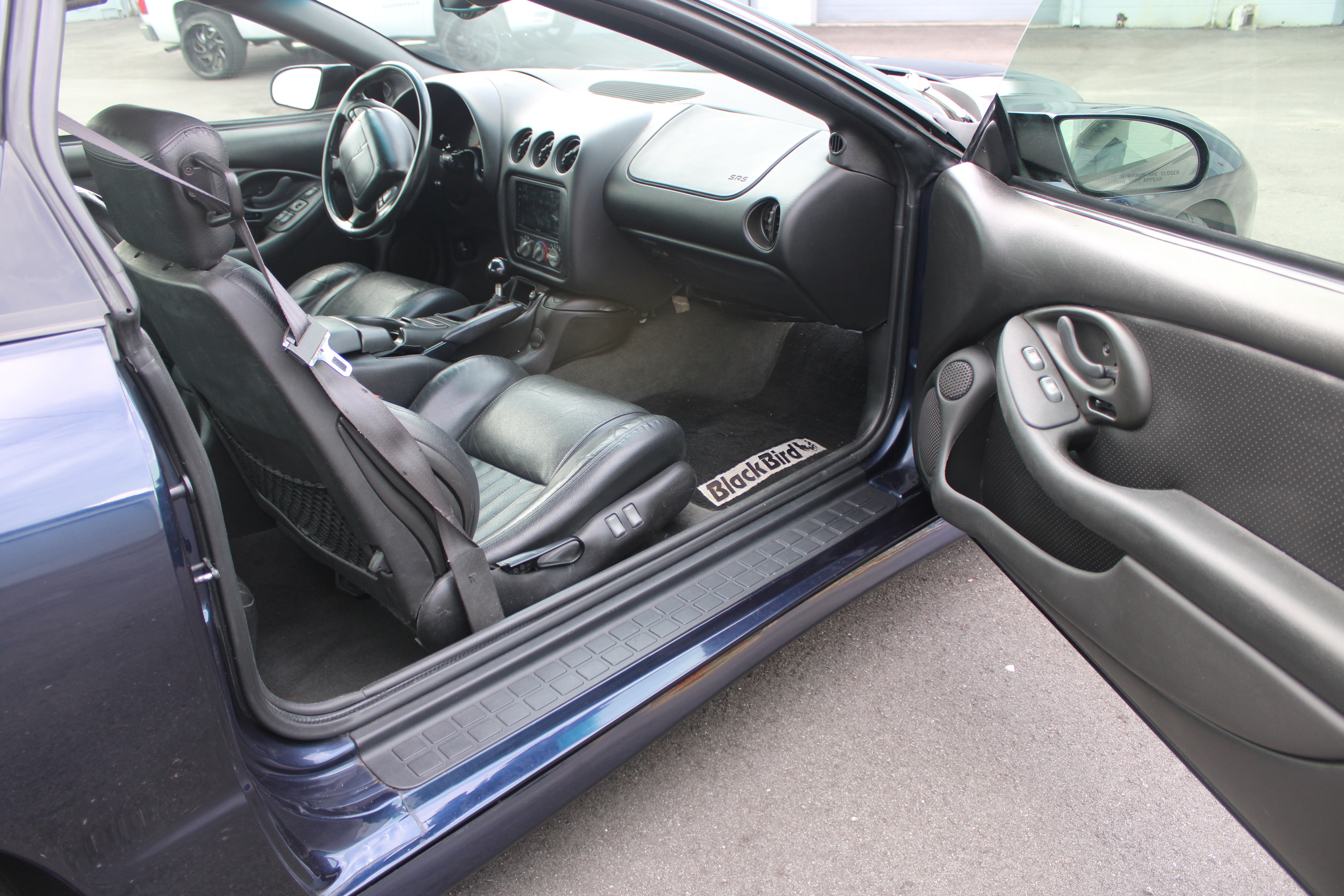

The previous owner included NOS Blackbird floor mats to replace the worn originals, along with two of the three NOS Blackbird emblems and NOS Blackbird hood graphics.

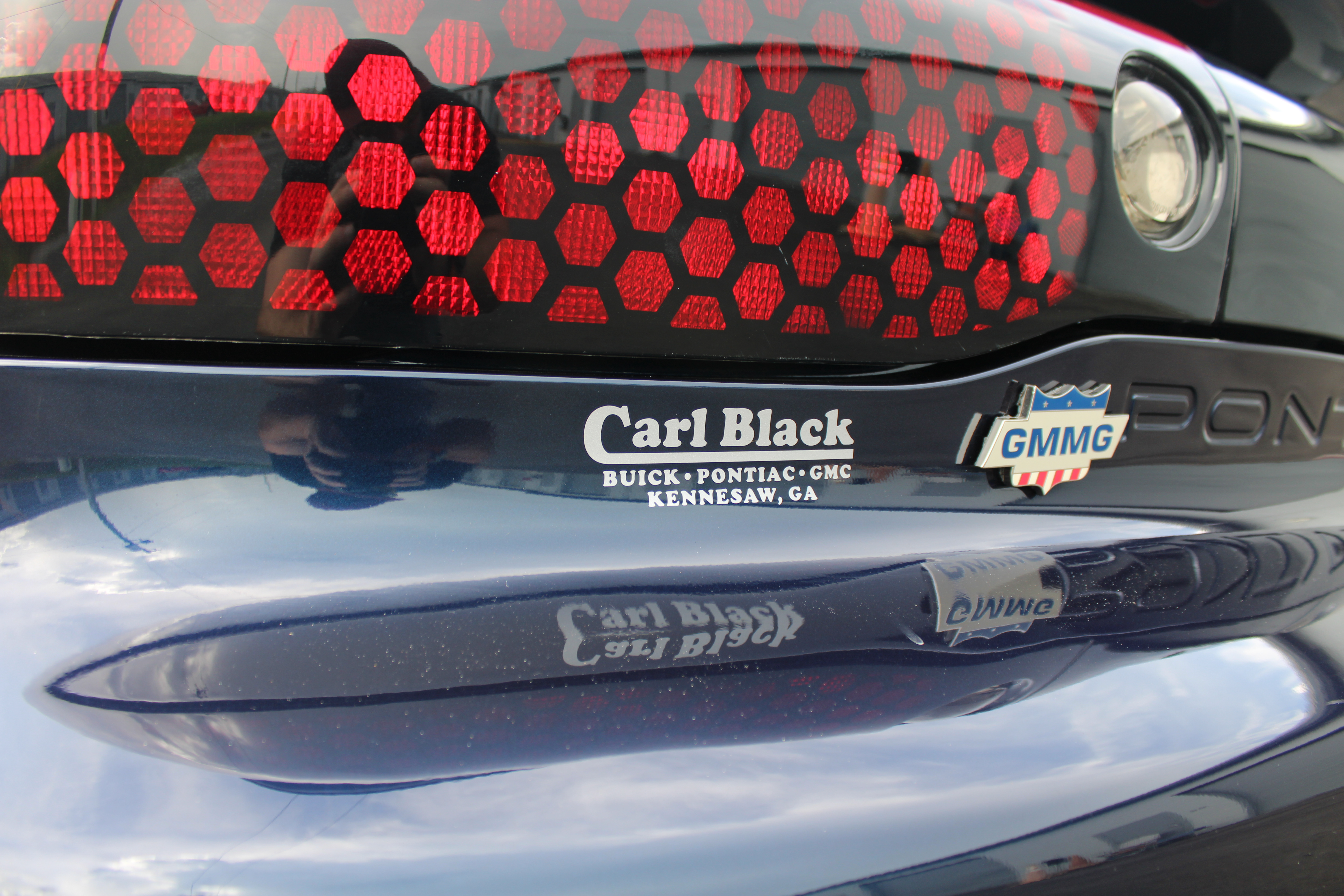

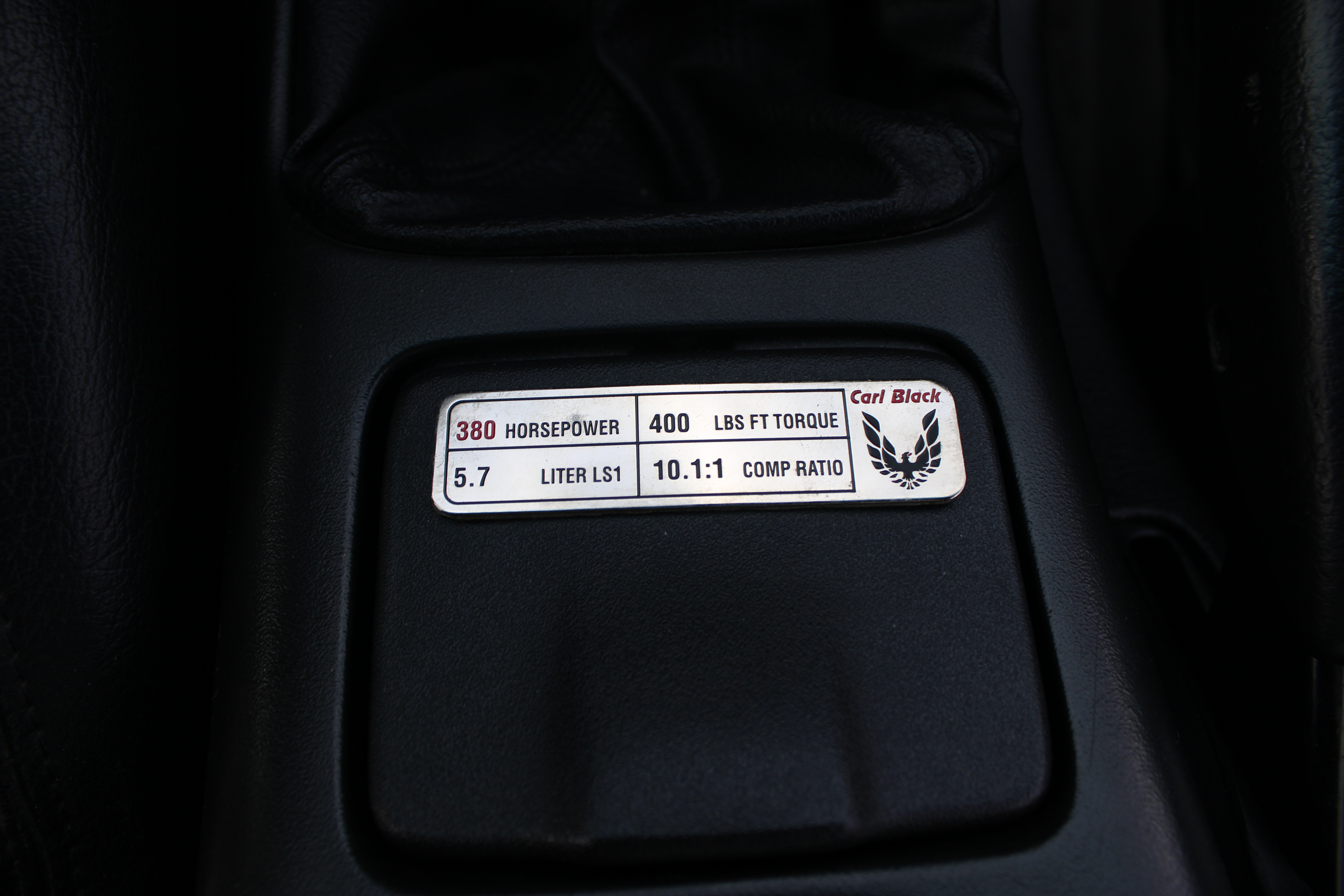

Also included were the appropriate GMMG and WS6 badges, along with a fresh Carl Black Pontiac vinyl decal—small but extremely important pieces when trying to put a car like this back together correctly.

There was still one problem.

We were missing the third Blackbird emblem.

Through the GMMG community, Aaron Barnell of the GMMG Registry put us in touch with longtime GMMG owner and enthusiast Ryan Datko, who happened to have an extra Blackbird badge.

Thanks to Aaron and Ryan, we finally had all three.

For a car produced in numbers this small, help from fellow enthusiasts can make the difference between getting a restoration close and getting the little details right. A big thank-you goes to both of them for helping us complete the car.

Paint Done Right

With the mechanical work progressing and the difficult-to-find Blackbird pieces accounted for, the car was sent to our trusted local painter and fellow F-body enthusiast, Steve K at Steve K Auto Paint and Detailing in Holiday, Florida.

This was not going to be a quick respray.

Steve and his team meticulously worked their way around the body, sanding and correcting years of accumulated damage. One of the more substantial repairs involved a significant dent and crease immediately behind the passenger door.

That area was repaired and reshaped before the body was prepared for its fresh Navy Blue Metallic finish.

We also asked Steve to do something the factory never did.

The factory engine compartment was never finished to the same standard as the exterior bodywork. Since the drivetrain was already out of the car, we wanted to take advantage of the opportunity.

Instead of simply cleaning and touching up the engine bay, Steve and his team painstakingly sanded and prepared the entire compartment so it could receive the same Navy Blue Metallic color, depth, and gloss as the exterior of the car.

The execution was perfect.

With fresh Navy Blue Metallic paint outside and a show-quality engine compartment underneath the hood, the Blackbird finally had the finish its drivetrain and rarity deserved.

Putting the Bird Back Together

With the body back from paint, the long process of reassembly began.

The restored drivetrain went back into the freshly painted engine compartment along with the ceramic-coated headers, restored components, replacement labels, and the numerous small pieces collected during the project.

While the car was apart, we also made a few subtle updates intended to make it more enjoyable without changing its character.

Inside, accent and footwell lighting was added and integrated with the map-light circuit in the rearview mirror. Opening the doors or illuminating the interior now brings up the additional lighting as though it belongs there.

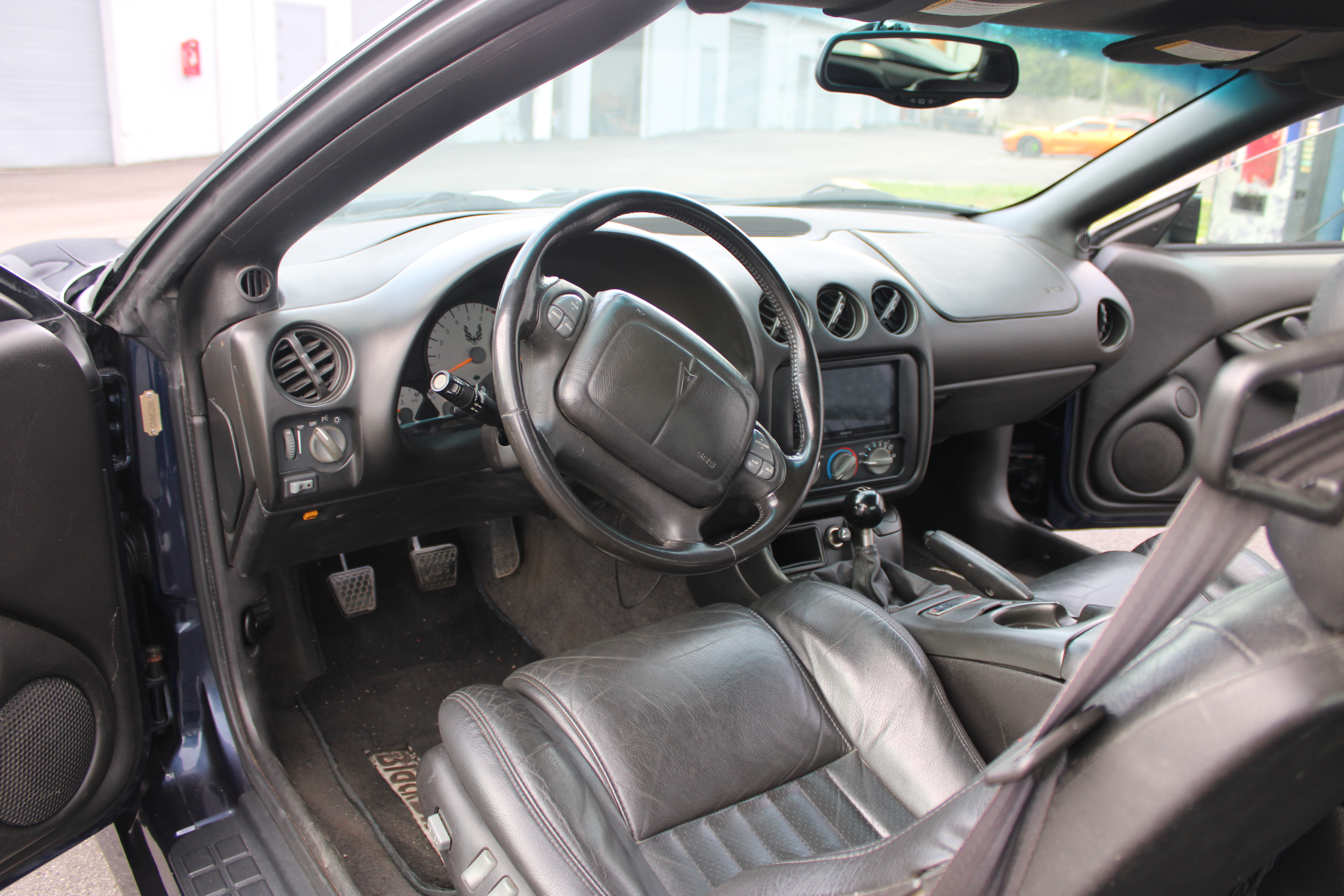

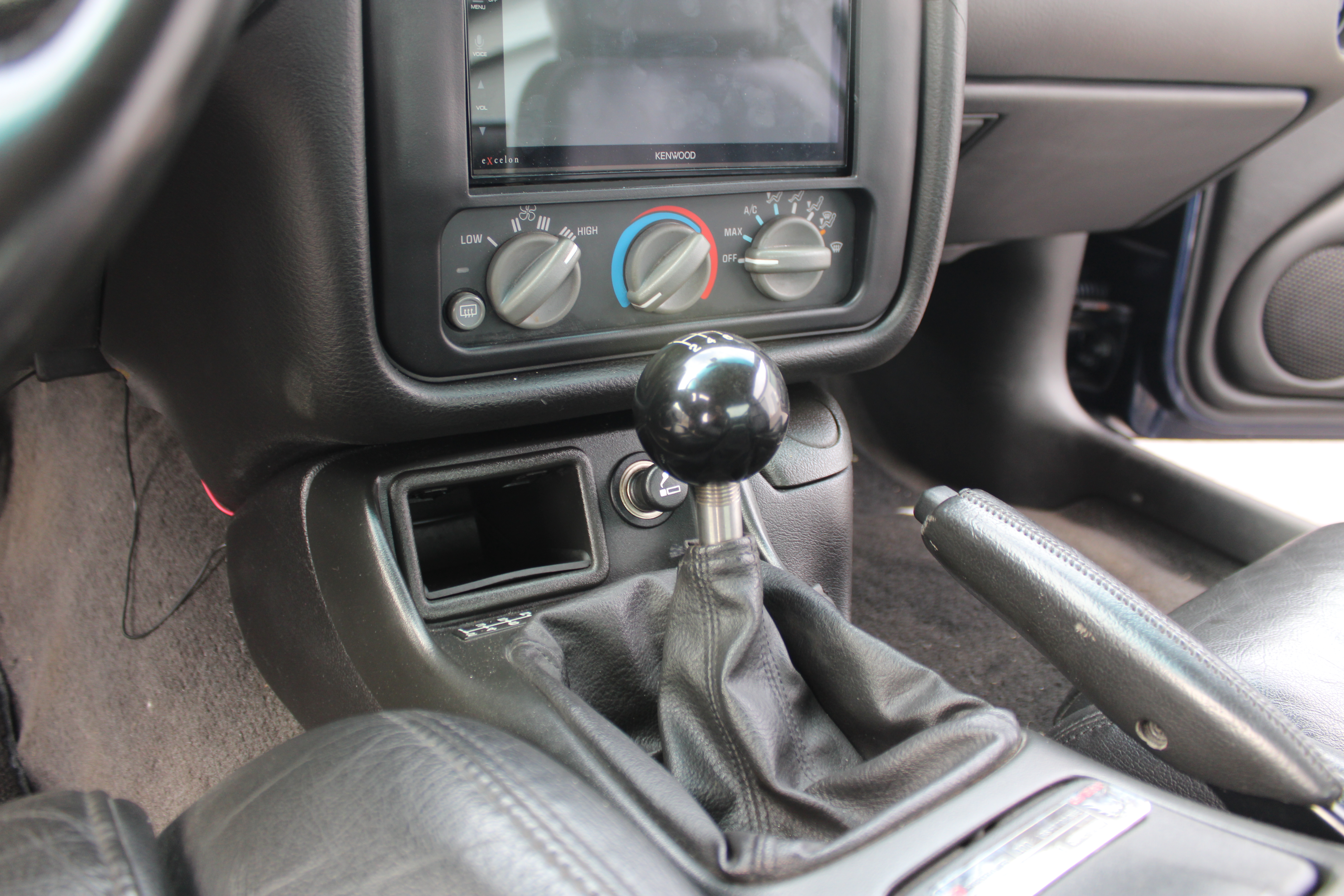

The factory Monsoon head unit was replaced with a Kenwood touchscreen receiver featuring wireless Apple CarPlay, providing modern navigation, music, and phone integration without otherwise changing the character of the cabin.

We also replaced the existing Monster clutch with an OEM-style LS7 clutch setup. The goal wasn't additional holding capacity—it was drivability. The LS7-style clutch gives the car a much more natural pedal and engagement for a car that we actually want to get out and drive.

Blackbird #44 Flies Again

What began as a running but tired Blackbird became much more involved than simply fixing the paint.

The engine and transmission came out. The engine compartment was stripped and refinished. A damaged door was replaced. The engine and exhaust were cleaned and refreshed. Hard-to-find labels, graphics, emblems, and trim pieces were tracked down. The wheels, brakes, cowl, interior, and dozens of smaller details received attention before the entire car went back together.

Most importantly, we tried to preserve what made the car special in the first place.

This isn't a recreation wearing Blackbird badges.

It is GMMG Blackbird #44 of 50 built for 2002, complete with the pieces and details that identify it as one of the rare F-bodies produced during the final year of fourth-generation Camaro and Firebird production.

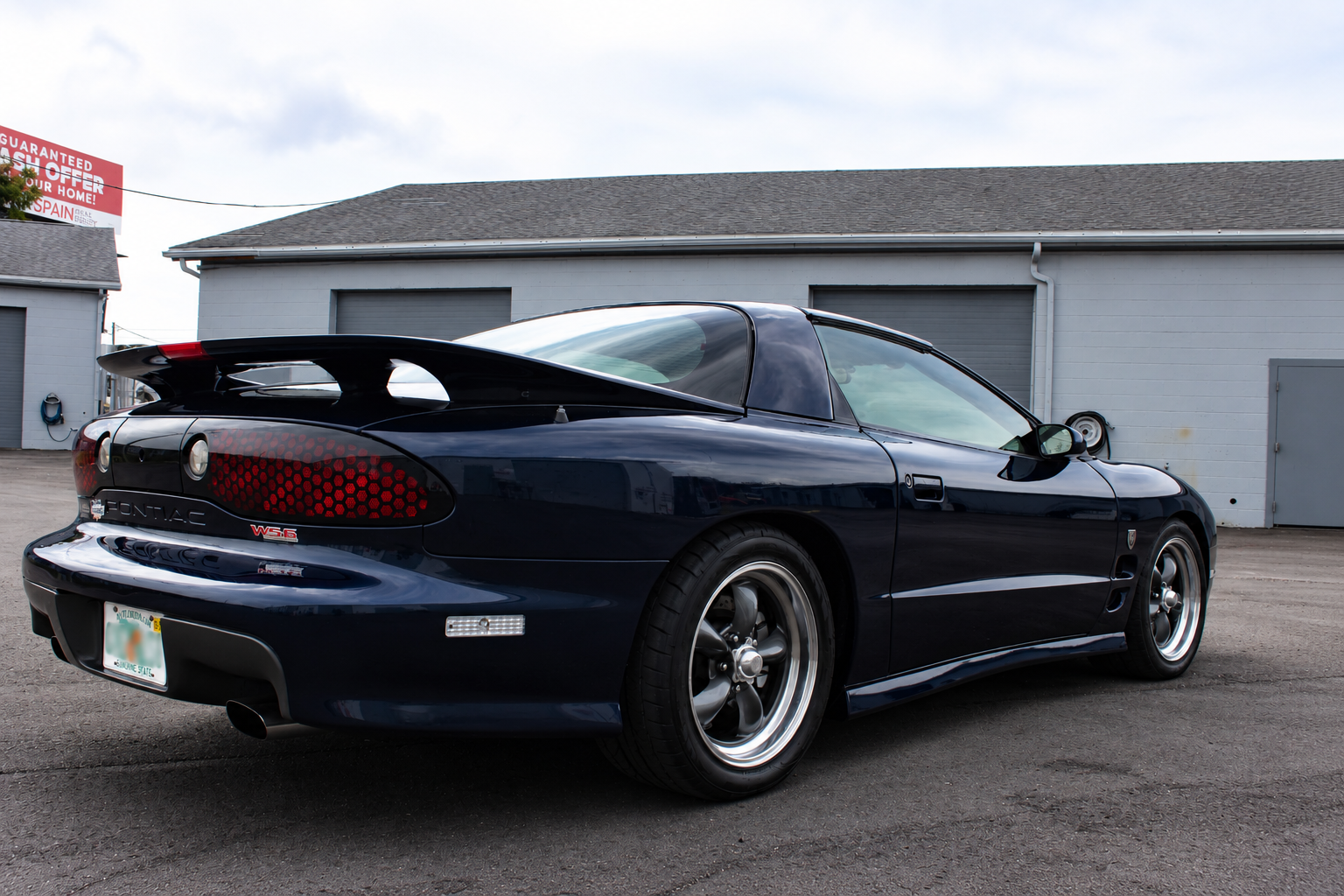

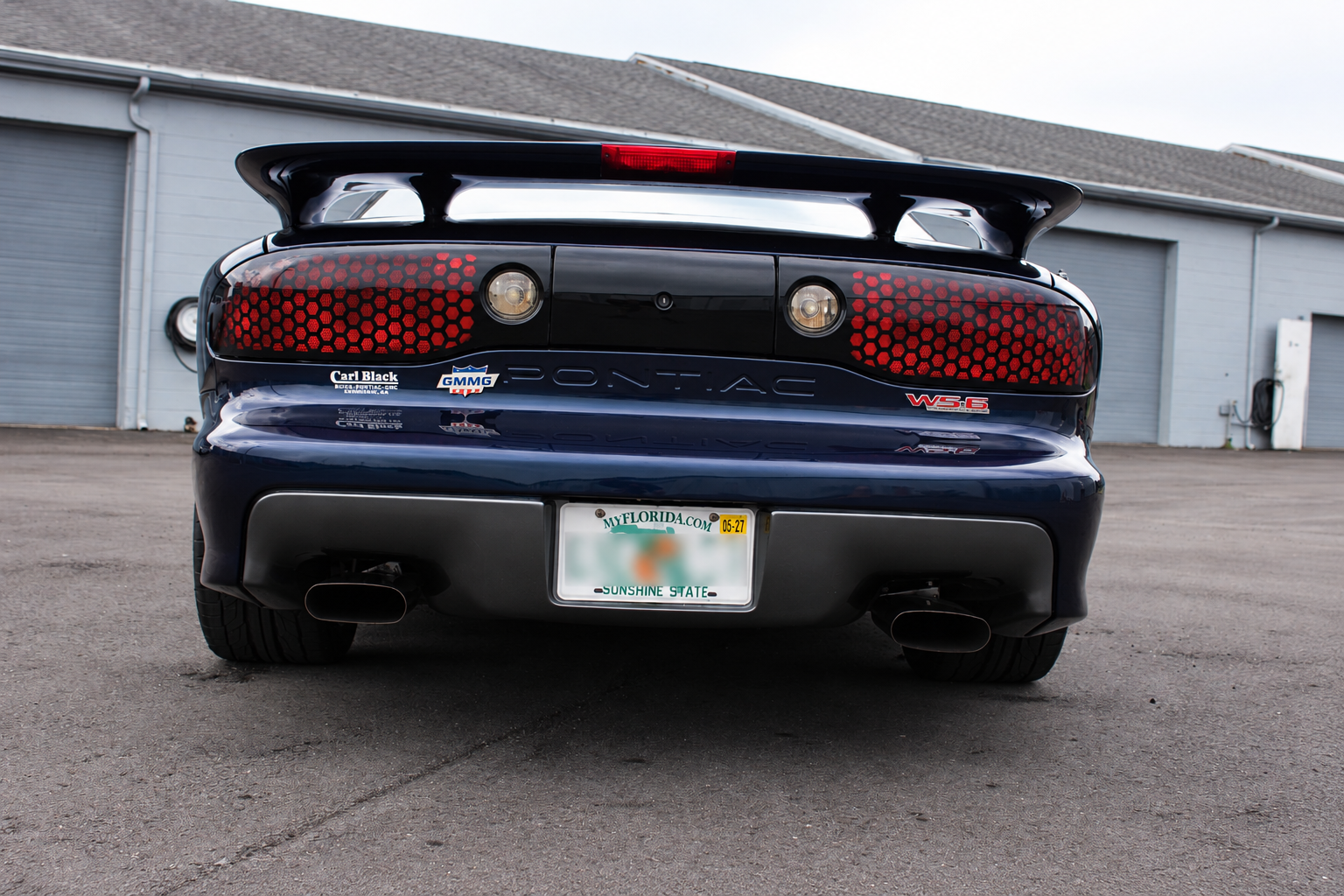

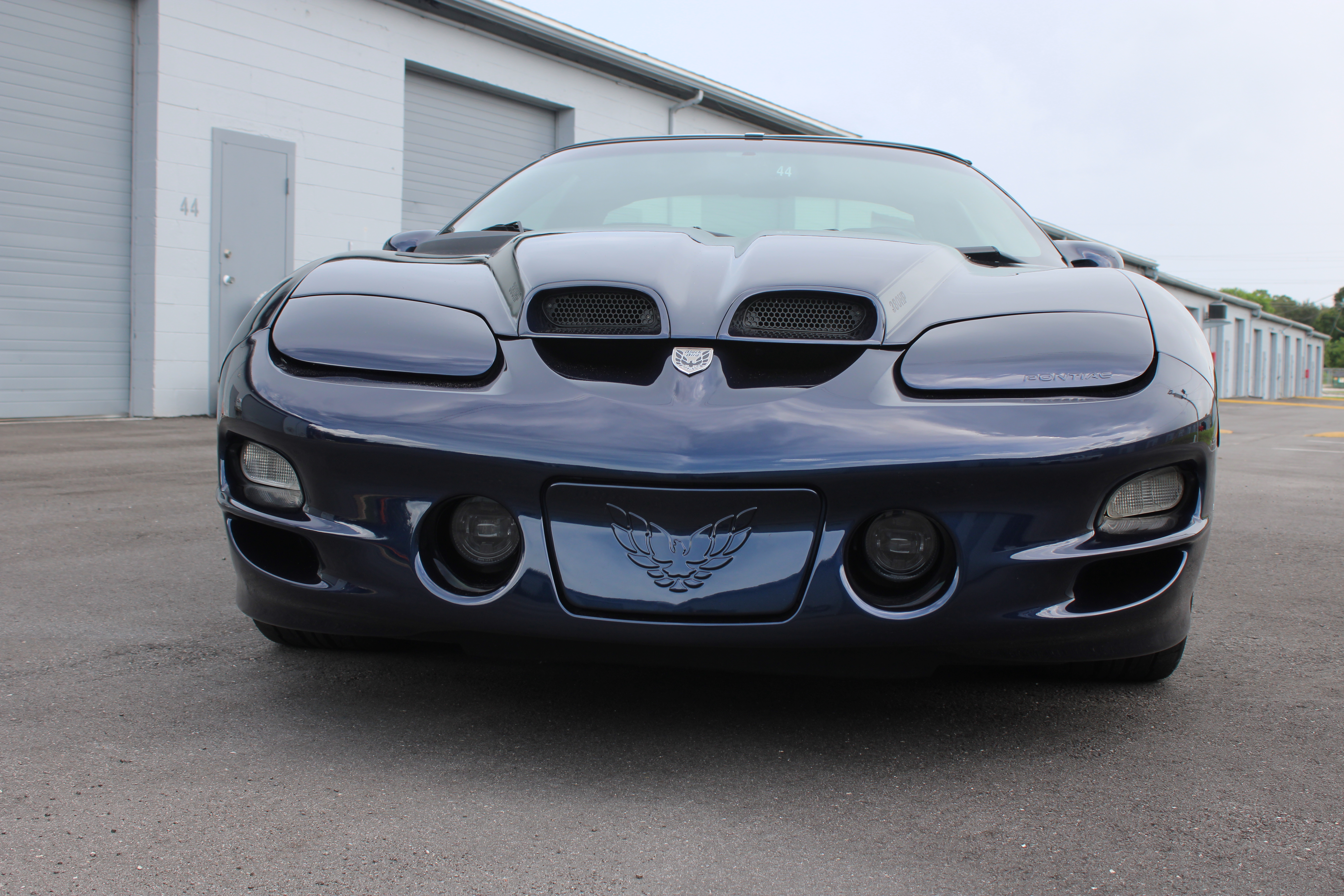

Today, the polished Torq-Thrust II wheels, restored Blackbird graphics and badging, fresh Navy Blue Metallic bodywork, silver calipers, and deep exterior finish once again look the part.

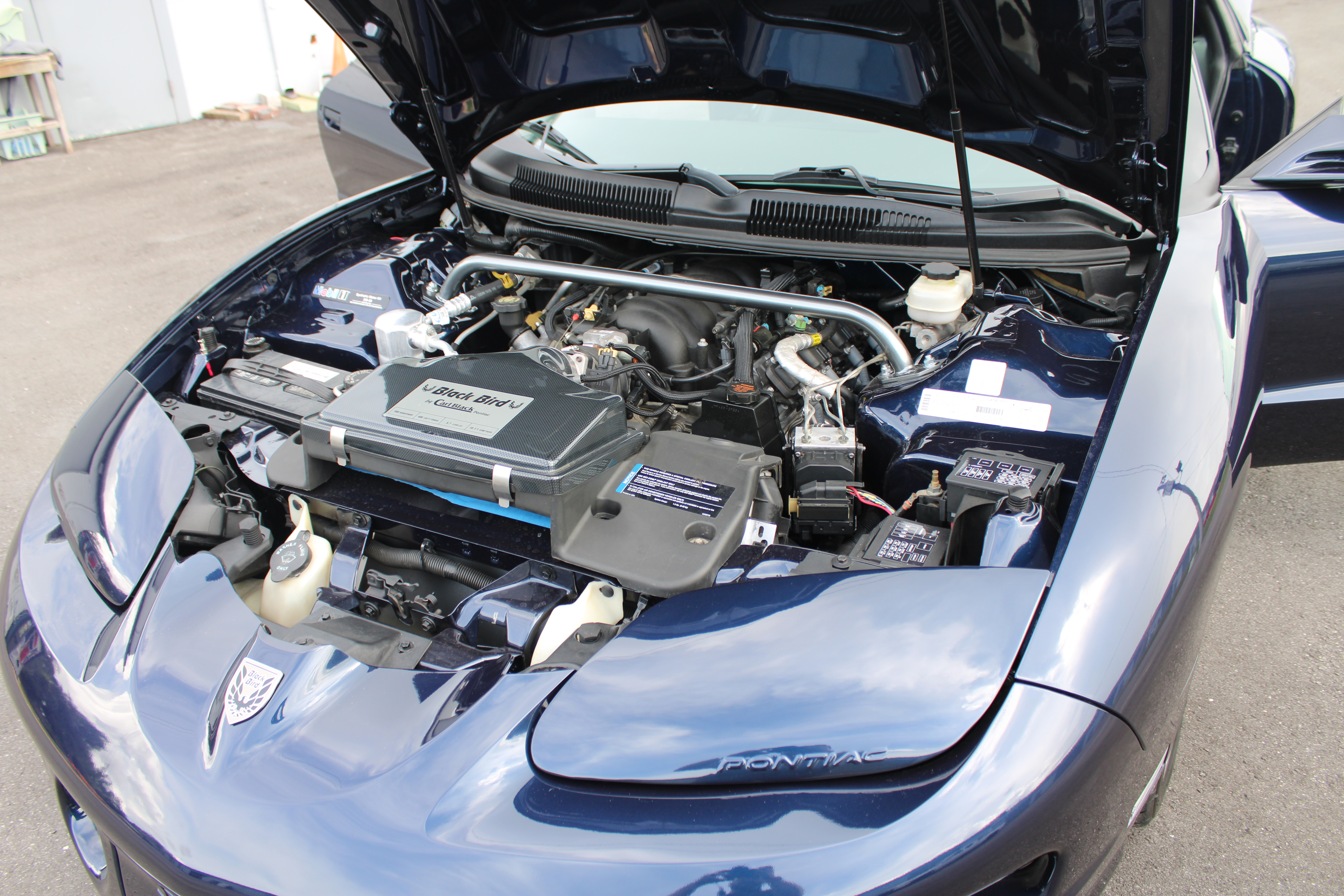

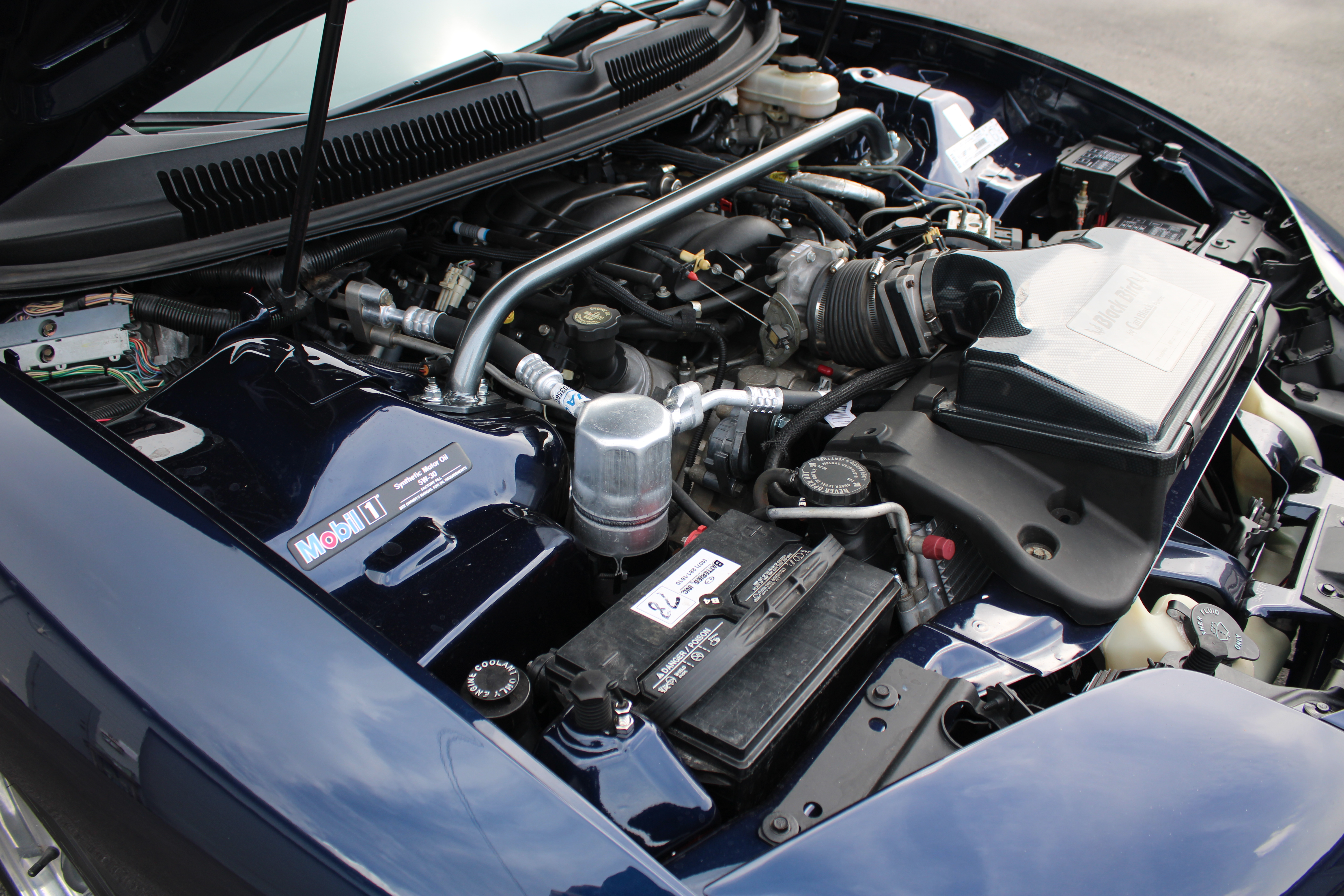

Pop the hood and the restoration continues underneath, with a gloss-finished Navy Blue Metallic engine compartment surrounding a cleaned and detailed LS1 and its ceramic-coated long-tube headers.

It took considerably more work than we anticipated when the car arrived. But rare cars deserve to be saved. And Blackbird #44 flies again.
